Description
The Tsurumi Pump – LSC Series is a lightweight yet highly durable single-phase contractor’s pump, trusted across industries such as construction, utilities, tool rental services, and flood management. Commonly known as a “puddle sucker,” this versatile pump is designed to remove water down to a depth of just 1mm, making it ideal for surface water clearance and shallow flooding applications.

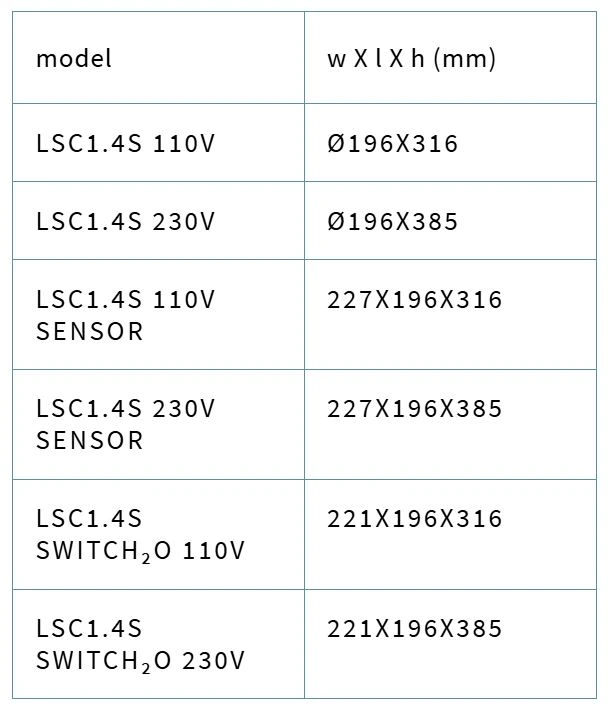

TECHNICAL DATA

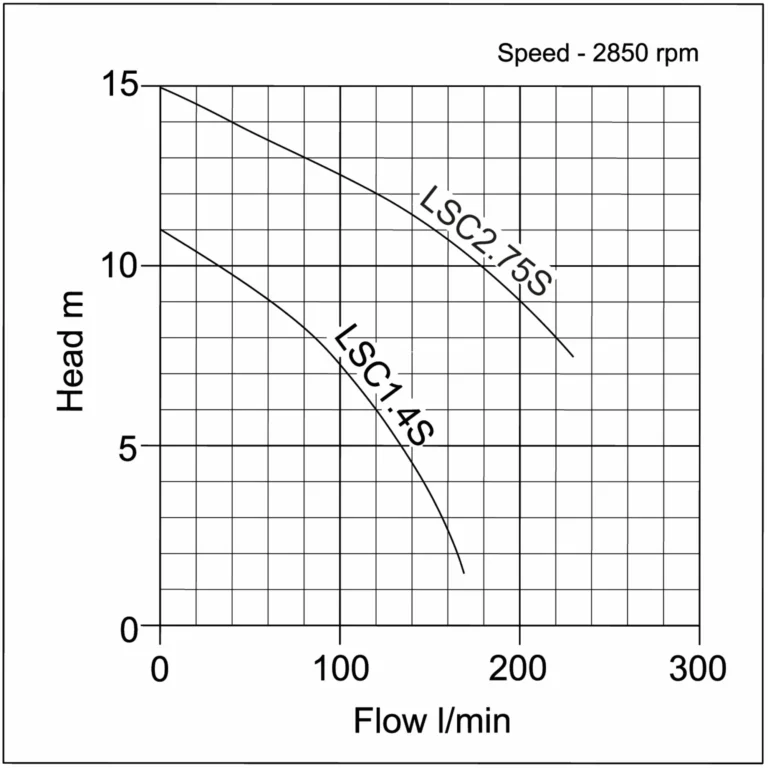

PERFORMANCE CURVE
SPECIFICATIONS
PUMP:
Handle (110v)/(230v): Resin/Steel & rubber
Outlet (50mm/25mm): Cast aluminium/ & steel
Outer cover: Steel
Bearing housing: Cast aluminium
Stand: Cast aluminium
Pump casing: Rubber
Impeller: Urethane
Suction cover: Steel & urethane
Wear ring: Steel & urethane
Shaft: S/S 410S
Shaft seal: Silicon carbide
Lubrication: Oil
NRV: Rubber
Strainer-bottom plate: S/S 304 & rubber
Level switch (Sensor): Rubber & S/S 304
Tsurumi Pump – LSC Series
– is a lightweight yet robust single-phase contractor’s pump, widely used by tool rental companies, utilities, construction firms, and in flood defense operations. Often referred to as a “puddle sucker,” it can efficiently pump water down to just 1mm.
The hydraulic design includes a double mechanical seal with an oil lifter, ensuring positive seal lubrication in any operating position. Furthermore, it features rubber and urethane components that provide excellent wear resistance, especially in site water applications containing sand and silt.
The top discharge design creates a water and air-cooling channel, which, combined with a high-performance motor, enables extended operation in seepage conditions. In addition, the discharge can be fixed in either horizontal or vertical positions, allowing users to position the outlet in the desired direction and avoid obstructions caused by a kinked hose. Finally, an integral check valve prevents backflow from the discharge hose, retaining priming water for quick startup when pumping begins.
